    CTZJ-15 Trucks Vehicle Steering Angle Tester load 15T with LCD control instrument with touch screen

    Ask Lasest Price
    Brand Name : Cartesy
    Model Number : CTZJ-15
    Certification : ISO
    Price : $8,000.00/sets
    Supply Ability : 100 Set/Sets per Month
    • Product Details
    • Company Profile

    CTZJ-15 Trucks Vehicle Steering Angle Tester load 15T with LCD control instrument with touch screen

    CTZJ-15 Trucks Vehicle Steering Angle Tester load 15T with LCD control instrument with touch screen

    Product Description:

    ◆CTZJ - 15 Vehicle Automatic Steering Angle can detect the max. steering angle of front wheels
    ◆Able to test the steering force and free rotation of steering wheel
    ◆Able to adapt to the wheel distance of various vehicles automatically, with simple measurement process; user-friendly, able to conduct data communication with other computer management systems
    fully-automatic vehicle steering angle tester is for test the vehicle turning wheel rotation angle around left and right direction. It can be used for testing the vehicle main parameter with steering wheel force measurement device, wheel alignment gauge, and other devices. This equipment can be moved leftward or rightward, forward or backward, and rotation. The device adjusts the wheelbase by using motor reducer. It has multi-function, like Character indicate, self-return, and print in stand-alone computer. It can be operated by connecting with the internet. It is can measure the steering angle correctly and conveniently. It is designed for car making manufacturer, car repairing enterprise, and the vehicle inspection and supervision department.


    Maximum axle load15000KG
    Platform sizeф550mm
    Turning angle measure arrangeLeft turn: 0~500;Right turn: 0~500
    Display methodLCD display
    Resolution ratio0.10
    Measurement accuracy2%FS
    Wheelbase adjust range±500mm
    PowerAC380V 50Hz
    Working conditionsEnvironment temp: 0~40℃
    Environment relative humidity:
    ≤85%(25℃)
    Power supply: AC380V±10%

    Operate method and working principle:

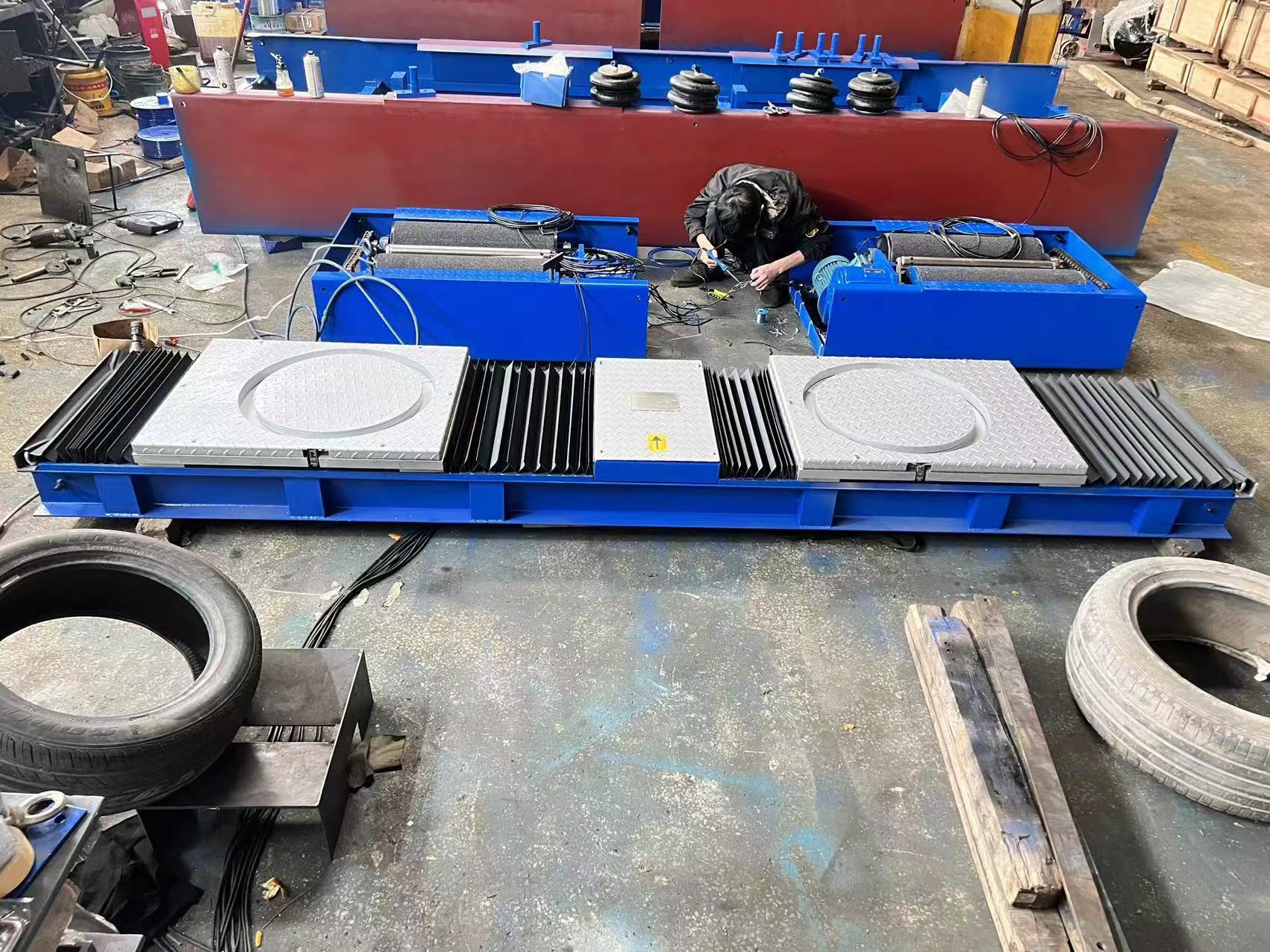

    The machine is consist of tester body (left and right symmetrical) and electric control box. Tester body carrying vehicle and vehicle turning on it. Electric control box is sampling and displaying data and controlling tester body. Following the requirement of the turning wheel tread and installing it on the base.

    Maintenance and servicing:

    1) Clean the oil and dust on the machine by using emery cloth and industrial alcohol regularly.
    2) Avoid the water
    3) Do not open electric box often, and do not plug out the connection line and circuit board. Make sure the plug in direction if need to change, for avoid the damage the machine

    Our Service

    1. OEM Manufacturing welcome: Product, Package...
    2. Special Design Service Offered
    3. We will reply you for your inquiry in 24 hours.
    4. after sending, we will track the products for you once every two days, until you get the products. When you got the
    goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
    the solve way for you.

    FAQ

    Q1. What is your terms of packing?
    A: Generally, we pack our goods in wooden case per set

    Q2. What is your terms of payment?
    A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages
    before you pay the balance.

    Q3. What is your terms of delivery?
    A: EXW, FOB

    Q4. How about your delivery time?
    A: Generally, it will take 10 or 30 days after receiving your advance payment. The specific delivery time depends
    on the items and the quantity of your order.

    Q5. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q6. What is your sample policy?
    A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
    the courier cost.

    Q7. Do you test all your goods before delivery?
    A: Yes, we have 100% test before delivery

    Q8: How do you make our business long-term and good relationship?
    A:1. We keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them,
    no matter where they come from.
