Cartesykj mobile movable roller brake tester 3T 10T 15T vehicle test lane vehicle inspection equipments

    Buy cheap Cartesykj mobile movable roller brake tester 3T 10T 15T vehicle test lane vehicle inspection equipments from wholesalers

    Buy cheap Cartesykj mobile movable roller brake tester 3T 10T 15T vehicle test lane vehicle inspection equipments from wholesalers
    • Buy cheap Cartesykj mobile movable roller brake tester 3T 10T 15T vehicle test lane vehicle inspection equipments from wholesalers
    • Buy cheap Cartesykj mobile movable roller brake tester 3T 10T 15T vehicle test lane vehicle inspection equipments from wholesalers

    Cartesykj mobile movable roller brake tester 3T 10T 15T vehicle test lane vehicle inspection equipments

    Ask Lasest Price
    Brand Name : cartesykj
    Model Number : CTFZ-3BY,CTFZ-10BY,CTFZ-15BY
    Certification : CE
    Price : $ - $/sets
    Payment Terms : L/C, T/T
    Supply Ability : 300 Set/Sets per Month
    Delivery Time : 20-25 working days
    • Product Details
    • Company Profile

    Cartesykj mobile movable roller brake tester 3T 10T 15T vehicle test lane vehicle inspection equipments

    Cartesykj mobile movable roller brake tester 3T 10T 15T vehicle test lane vehicle inspection equipments

    Measurement Items
    Brake Force (N) Axle Load(kg). Friction Efficiency (%)
    Axle Brake Efficiency (%) Sum Brake Efficiency (%) Axle Brake Imbalance (%)
    ★ The corundum roller surface with high adhesion coefficient, is near the road condition and has more than 280,000 life span. Independent safety system can automatically stop motor in case of wheel slip and to protect the wheel.
    ★ No need pit foundation, easy to be move around. We are equipment with wireless control system which can test the equipment without fixed work stage
    ★ With self-lock function which is convenient for car drive out after finishing test. ★ Optional foldable aluminum ramps, make it lighter.
    Feature :
    easy for moving no physical cables from control system to mechanical tester wireless communication

    Technical Parameter:

    ItemsParameters
    ModelCTFZ-3BYCTFZ-10BYCTFZ-15BY
    Axle Load3T10T15T
    Motor Power3KW X 211 kW X 215KW X 2
    Testing Speed2.5 kM/h2.5 kM/h2.5 kM/h
    Testing Range0-9000N0 ~ 30 KN0~ 45KN
    Roller DiameterФ160mmФ160mmФ160mm
    Roller Length750mm1,000mm1,200mm
    Power Supply380V 50HZ 3P380V 50HZ 3P380V 50HZ 3P

    Dimension of Bench

    (L X W X H)

    Ramp

    3420*910*180(530)mm 1200*750*180mm*4pcs4120 *1470 *180(530)mm 1200* 1000*180mm*4pcs4320*1470*180(530)mm 1200*1200*160mm*4pcs

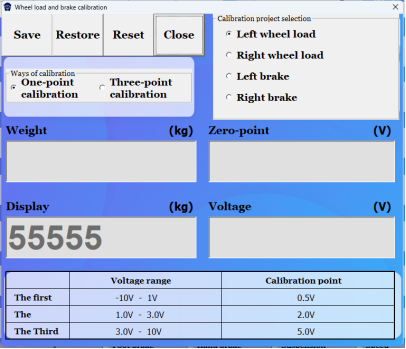

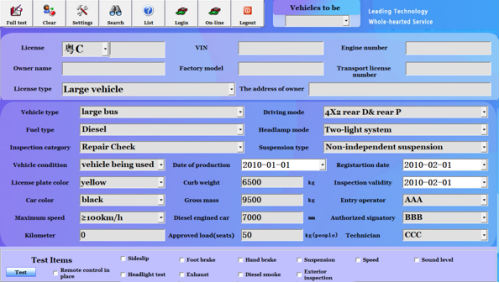

    -laptop to install the software
